DRAWING – PAC-MAN

STEPS

1 – Draw a sphere with diameter 100 centered on the origin.

2 – Create a sketch on the front view plane.

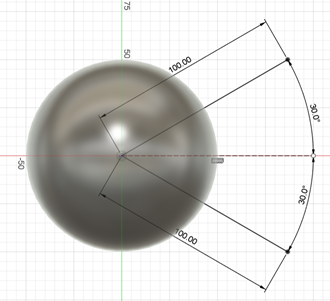

3 – Create two lines that start from the origin of length 100 with an angle of 30 degrees like the image bellow.

4 – Connect the two lines together to create a triangle. This is now a closed shape that can be extruded.

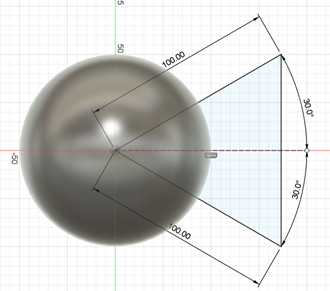

5 – Click Finish Sketch.

6 – Press E for Extrude.

7 – In the Extrude Panel, beside Direction, choose Symmetric.

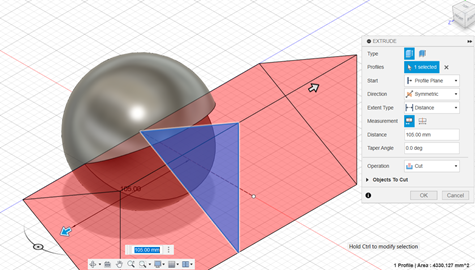

8 – Pull the Extrude arrow passed the sphere like below and hit Enter (or Ok).

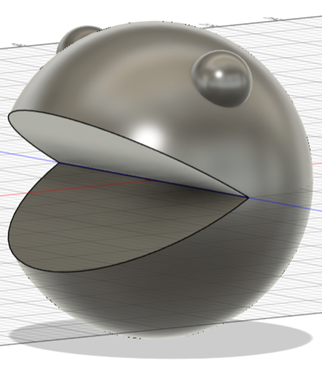

9 – You should now have Pac-man’s body done.

10 – Create a new sphere of diameter 20 at the origin. In the options on the right, make sure to create a new body here.

11 – Change your view to the Right view.

12 – Right click on the small sphere and choose Move/Copy.

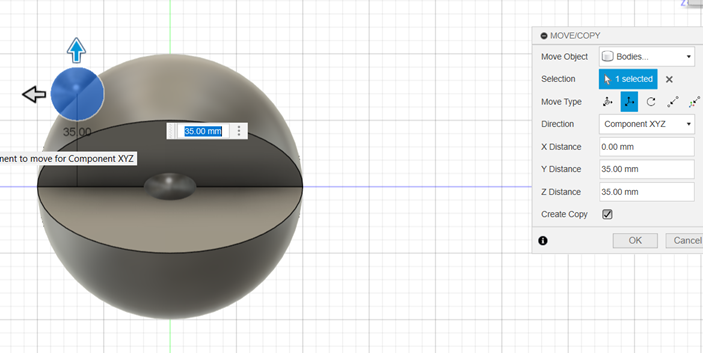

13 – In the panel on right, beside Move Object, choose Bodies. Then, at the very bottom, choose Create Copy.

14 – Now move your sphere by 35 to the left and 35 upwards and then hit Ok. Note that if you are having trouble moving this, it is likely because you didn’t create a new body in Step 10.

15 – Do the same for the other eye.

Done!
