CONNECT FOUR
TOPIC 03v2 – CONNECT FOUR AI



LESSON WORK





TASK



  • You will create an AI agent that will play Connect Four (Version 2.X).

SOFTWARE

  • You will be given the implementation of a text-based Connect Four game.

  • The software will support the running of a single game with all moves displayed in the console.  This single game can be between two humans, two AIAgents or a human versus an AIAgent.



  • The software will also support the running of a series of games.  A series of games is ran efficiently by turning off the move-by-move display.  This way, a large number of games (such as 1000) can be ran and results could be seen without any delays.  A series is between two AIAgents, each getting their turn as the first player and the second player.



  • The software will also support the running of a tournament.  A tournament is a round-robin tournament between all specified AIAgents.  Each AIAgent plays a series against each other AIAgent and the software will output results for each series and at the end will show the total records of all AIAgents to determine the top three winners.



  • Along with the software for the game, you will also receive a few basic implementations of different AIAgents.



OUR COMPETITION



  • Each student will create an AIAgent that will play Connect Four.

  • Using the tournament option in the software, all student AIAgents will face off against all other agents to see which work best.  The result of our tournament will determine our top three AI Champions.



  • All student AIAgents will play a series (probably 1000 games) against each other AIAgents.  They will play of the games as the first player and half as the second player.

  • The point system used will be:

              Win: 1 point
              Tie: 0 points
              Loss: 0 points

    So, the AIAgent with the most wins will be crowned this year’s champion.



  • Mr. Campeau will provide an AI agent as well to participate in the competition.

  • A random AIAgent will also participate.  (Easy wins…)



ABOUT CONNECT FOUR

  • The game board consists of six rows and seven columns of slots.  There are two players in the game.  Turn by turn, a player drops a chip into one of the columns and it falls to the bottommost empty slot.




  • The player that first makes a straight line of four consecutive chips with their colour wins the game.  The winning line could be vertical, horizontal or diagonal.  If there is no winning line and the board is full, then the game is a tie.

TWIST TO OUR GAME



  • For the tournament, the first move for each player will be done randomly.  This is done to ensure that we don’t have the exact same game being repeated over and over between 2 AI agents.

IMPLEMENTATION FILES



  • Here are the files:

    • Tester.java – Contains the main function.  Allows you to run a single game, a series of games or a tournament.

    • Game.java – The code needed to run a single game.

    • Series.java – The code needed to run a series of games.

    • Tournament.java – The code needed to run a tournament between any number of AIAgents.

    • Slot.java – A class that represents a single slot on the board.

    • AIAgent.java – An interface that specifies all of the methods that your AI bots need to have to be functional with this software.

    • You will also receive a few implemented AIAgents.

GAMEBOARD IMPLEMENTATION DETAILS

  • Each possible placement on the board is a slot.  The board consists of 6 rows and 7 columns of slots for a total of 42 slots.

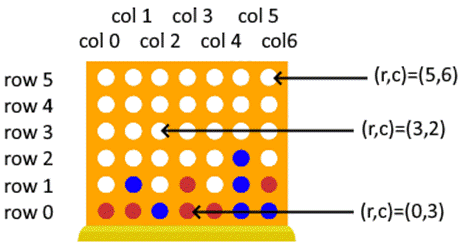

  • The bottom row is row 0 and the top row is row 5.  The leftmost column is column 0 and the rightmost column is column 6.  See the diagram below.




Note: This diagram was updated for Version 2.X of the software.

  • Each slot is open or contains a chip owned by player 1 or player 2.

PROVIDED AI AGENTS



  • You will be provided with a few implemented AIAgents.



    • RandomAI01 – An AIAgent that randomly picks one of the columns to drop a chip into.

    • RandomAI02 – A small improvement over a RandomAI01.  This AIAgent picks a random column that is not already full (avoiding losing a game for an illegal move).

    • CampeauAI01 – A simple AIAgent that associates a value to each spot on the board.  It then considers the 7 spots that it can select and chooses the one with the best value.

    • CampeauAI02 – A simple AIAgent that checks if it can win this move.  If it can, it does that selection.  Otherwise, it uses the basic RandomAI strategy of returning a random column number.



ABOUT THE AIAGENT INTERFACE



  • Your AI program needs to be in a class called YourNameAI.java.  So as student named BillyBob will code inside a class called BillyBobAI.java.

  • Your AI program needs to be in a class that implements the AIAgent interface.  This interface contains 7 methods.  The playMove method is the most important part of your program while other methods are less important.

  • The int playMove(Game g, int playerNumber) method is automatically called when it is your AI’s turn to choose a column in which to drop a chip.  It receives a clone of the game object (not the original object) so that it could decide what move to make.

  • You will learn about how to access the Game object during your teacher’s demo.



TIPS



Be organized!  Your program will potentially grow considerably.



Use functions when possible so that you can easily reused them in later AI programs.

Once you have a functioning AI program, save it somewhere.  Either duplicate the class or dump the code in another file.  If you just alter it, you have a difficult time coming back to it later.  Plus, having two different versions of your AI will allow you to test one versus the other.



Start small.  Create a few simple AI programs and test them.  It is a lot of fun watching your “babies” (I mean AI programs) play the game.

Avoid making AI programs that are only for player 1.  Try to make your programs work for both player 1 and player 2.
